Cisco 1841 bundle with HWIC-1DSU-T1-V2, IP Base, 64FL/256DR
Cisco Systems® is redefining best-in-class enterprise and small- to-medium-sized business routing with a new line of integrated services routers that are optimized for the secure, wire-speed delivery of concurrent data, voice, and video services. Founded on 20 years of leadership and innovation, the modular Cisco® 1800 Series of integrated services routers (refer to Figure 1) intelligently embed data and security into a single, resilient system for fast, scalable delivery of mission-critical business applications. The best-in-class Cisco 1800 Series architecture has been specifically designed to meet requirements of small-to-medium-sized businesses, small enterprise branch offices, and service provider-managed services applications for delivery of concurrent services at wire-speed performance. The integrated secure systems architecture of the Cisco 1800 Series delivers maximum business agility and investment protection.
Product Overview

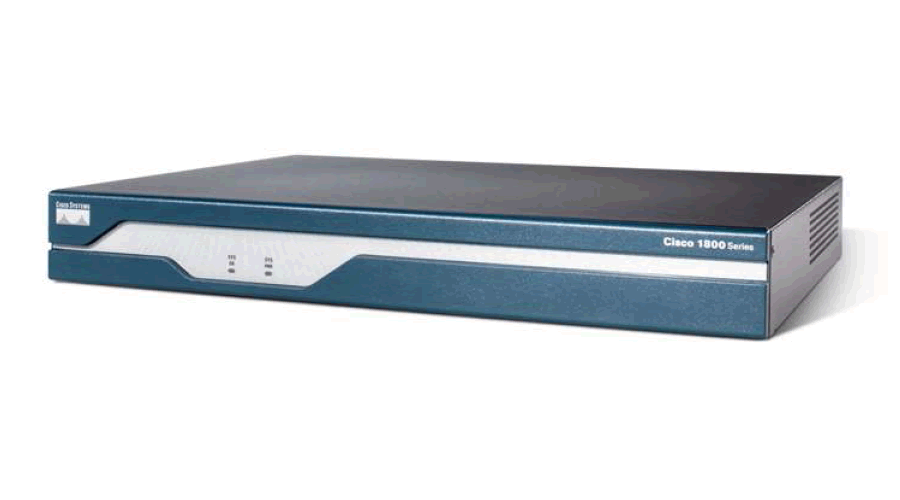

Cisco 1800 Series integrated services routers are the next evolution of the award-winning Cisco 1700 Series modular access routers. The Cisco 1841 router (Figure 1) is designed for secure data connectivity and provides significant additional value compared to prior generations of Cisco 1700 Series routers by offering more than a fivefold performance increase and integrated hardware-based encryption enabled by an optional Cisco IOS® Software security image. The Cisco 1841 dramatically increase interface card slot performance and density over the Cisco 1700 Series while maintaining support for more than 30 existing WAN interface cards (WICs) and multiflex trunk cards (voice/WICs [VWICs]-for data only on the Cisco 1841 router).
The Cisco 1841 router features secure, fast, and high-quality delivery of multiple, concurrent services for small-to-medium-sized businesses and small enterprise branch offices. The Cisco 1841 router offers embedded hardware-based encryption enabled by an optional Cisco IOS Software security image; further enhancement of VPN performance with an optional VPN acceleration module; an intrusion prevention system (IPS) and firewall functions; interfaces for a wide range of connectivity requirements, including support for optional integrated switch ports; plus sufficient performance and slot density for future network expansion and advanced applications as well as an integrated real-time clock.
Cisco 1841 bundle with HWIC-1DSU-T1-V2, IP Base, 64FL/256DR
Data Sheet 329.06 kB
Cisco 1841 bundle with HWIC-1DSU-T1-V2, IP Base, 64FL/256DR
- Supports concurrent deployment of high-performance, secure data services with headroom for future applications
- Offers wide variety of LAN and WAN options; network interfaces are field-upgradable to accommodate future technologies
- Provides many types of slots to add connectivity and services in the future on an "integrate-as-you-grow" basis
- Supports more than 30 modules and interface cards, including existing WAN (WIC) and multiflex (VWIC) interface cards (for data support only on the Cisco 1841 router) and advanced integration modules (AIMs)
- Offers cryptography accelerator as standard integrated hardware that can be enabled with an optional Cisco IOS Software for 3DES and AES encryption support
- Provides enhanced feature set of security performance through support of optional VPN acceleration card for VPN 3DES or AES encryption
- Provides 64 MB of Flash and 256 MB of synchronous dynamic RAM (SDRAM) memory to support deployment of concurrent services
- Helps enable connectivity speeds up to 100BASE-T Ethernet technology without the need for cards and modules
- Allows segmentation of the LAN
- Supports the Cisco 1841 router starting with Cisco IOS Software Release 12.3T
- Helps enable end-to-end solutions with support for latest Cisco IOS Software-based QoS, bandwidth management, and security features
- Provides for easier installation and management of the router platform
- The modular architecture on the Cisco 1841 router supports HWIC slots. The newly designed high-speed WAN interface slots significantly increase the data-throughput capability (up to 800-Mbps aggregate). Table 6 lists the High Speed WAN Interface cards supported on the Cisco 1841.
- Both slots on the Cisco 1841 router are HWIC slots and provide compatibility with WICs and multiflex trunk (VWICs) interface cards
- (for data only).
- The Cisco 1841 router supports hardware-accelerated encryption through AIM modules (AIM-VPN/SSL-1) and intrusion prevention through AIM-IPS-K9 module
- The Cisco 1841 router has one internal AIM slot.
- Support for hardware-based encryption on the Cisco 1841 can be enabled through an optional Cisco IOS Software security image.
- Support for an optional dedicated VPN AIM can deliver two to three times the performance of embedded encryption capabilities.
- Allows businesses to securely and transparently extend their networks to any Internet-enabled location using SSL VPN; the Cisco IOS WebVPN supports clientless access to applications such as HTML-based intranet content, e-mail, network file shares, and Citrix and to the Cisco SSL VPN Client, enabling full network access remotely to virtually any application
- An optional dedicated SSL VPN AIM module provides SSL VPN acceleration and supports two times the number of tunnels when compared to embedded IOS based SSL VPN capabilities. The SSL VPN AIM module also supports IPSEC VPN and IP Payload Compression Protocol in hardware.
- NAC allows network access only to compliant and trusted endpoint devices for antivirus defense.
- Flexible support is provided with Cisco IOS Software.
- New intrusion-detection-system (IDS) signatures can be dynamically loaded independent of the Cisco IOS Software release.
- This feature eases administration and management of point-to-point VPNs by actively pushing new security policies from a single headend to remote sites.
- DMVPN is a Cisco IOS Software solution for building IPSec + generic routing encapsulation (GRE) VPNs in an easy and scalable manner.
- GET VPN is a Cisco IOS Software solution that simplifies securing large Layer 2 or MPLS networks requiring partial or full-mesh connectivity by providing tunnel-less VPN connectivity
- URL filtering support is available with optional Cisco IOS Security Software.
- Real-time clock support keeps an accurate value of date and time for applications that require an accurate time stamp-such as logging, debugging, and digital certificates.
- An intuitive, easy-to-use, Web-based device management tool embedded within the Cisco IOS Software access routers can be accessed remotely for faster and easier deployment of Cisco routers for both WAN access and security features.
- Cisco SDM helps resellers and customers to quickly and easily deploy, configure, and monitor a Cisco access router without requiring knowledge of the Cisco IOS Software command-line interface.
- The integrated USB port is configurable with an optional USB token for secure configuration distribution and off-platform storage of VPN credentials.
Cisco 1841 bundle with HWIC-1DSU-T1-V2, IP Base, 64FL/256DR
1-Port T1/Fractional T1 DSU/CSU WAN Interface Card (HWIC-1DSU-T1):
- 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card
Mfg. Part Number:
CISCO1841-T1-V2
