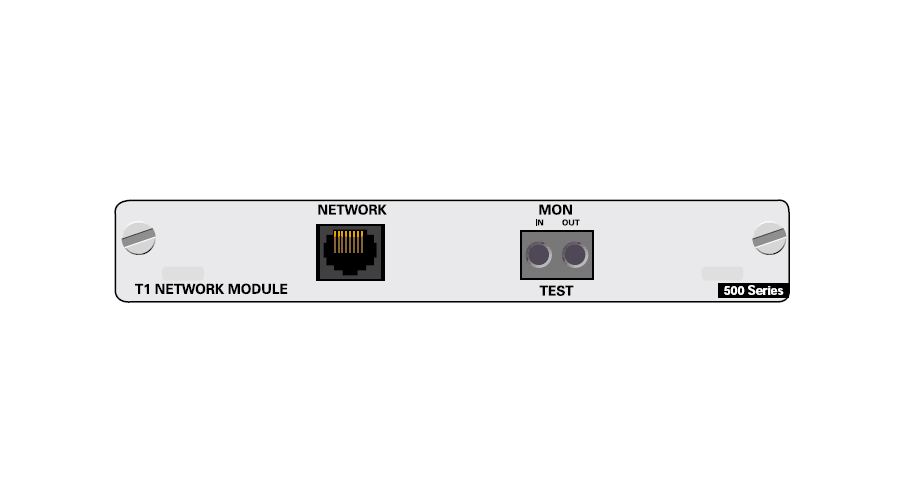

Adtran ATLAS 550 T1 PRI Network Module

An ATLAS 550 module providing a single interface which can be configured for T1 or PRI.

ATLAS 550 Modules
Cross-Connect System (DACS), and a Frame Relay Switch. These modules provide either one, two, or four ports, each of which can be independently configured to operate in T1 (DS-1 or DSX-1) or Primary Rate ISDN (PRI) modes.

The ATLAS 550 can perform T1 or PRI conversion, translating between the robbedbit signaling presented in a channelized T1 circuit and the D-channel signaling of a PRI circuit. When using the T1/PRI modules, ATLAS can also operate in a DACS mode supporting DSO time slot interchange and DSO grooming while preserving robbed bit signaling. ATLAS can be fully populated with T1/PRI modules to support a pure DACSing application of 18 T1/FT1 circuits or 18 PRIs.

T1/PRI modules can be used to interface with both the public network and end-user equipment. The single T1/PRI module can only be used in the Network Interface slot, while the Dual and Quad T1/PRI modules can be used in any of the four User slots of the ATLAS 550.

Adtran ATLAS 550 T1 PRI Network Module

Data Sheet 90.21 kB
Quick Start Guide 191.85 kB

Adtran ATLAS 550 T1 PRI Network Module

• Provides a single interface which can be configured for T1 or PRI
• Supports Drop/Insert and 1/0 Digital Access Cross-Connect Systems (DACS) applications
• Supports PRI switching applications
• Supports Frame Relay emulation and passthrough
• T1/PRI port can serve as timing source for the ATLAS 550
• T1/PRI port can be configured for network or customer facing connections
