NetGear ProSafe 24-Port Gigabit Smart Switch GS724T-300

Designed for SMB Customers with High Performance and Easy Management

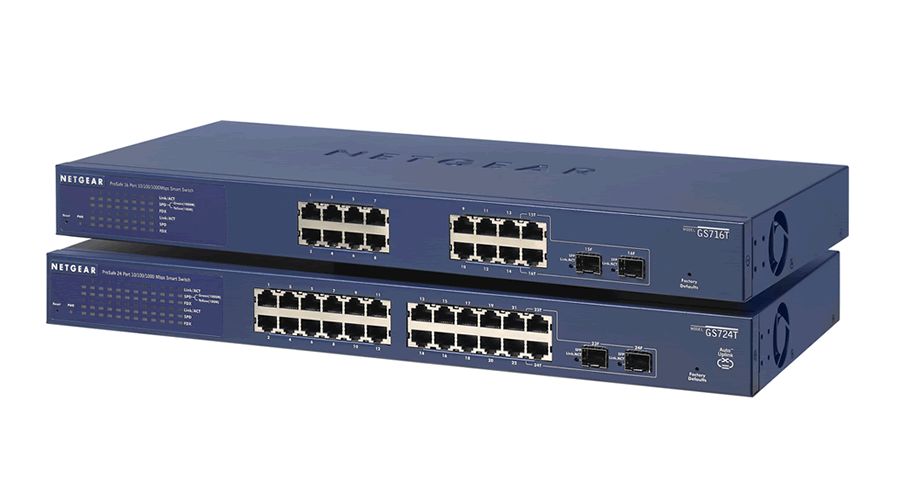

NETGEAR’s family of Prosafe™ Gigabit Smart Switches is purposely designed for SMB customers with high performance, SMB-oriented features and easy management. With 16 or 24 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode per port, plus two shared SFP ports, the GS716T-200 and GS724T-300 will enable SMB networks to support Voice over IP (VoIP), streaming media, multicasting, security, and many other bandwidth-intensive applications like ERP and large file transfers.

The GS716T-200 and GS724T-300 come with a comprehensive set of features, such as access control lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP snooping among others to provide a small and medium-sized business with a network that is geared for growth while ensuring performance and reliability.

In addition, an intuitive, Web-browser interface offers the simple Smart Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization. Alternatively, use SNMP-based software to manage your Smart Switch. Shipped ready for use straight out of the box, it delivers switching that’s easy to set up and use. NETGEAR ProSafe Smart Switches are ideal for adding basic management to your unmanaged networks or extending your managed networks.

NetGear ProSafe 24-Port Gigabit Smart Switch GS724T-300

Data Sheet 515.71 kB

NetGear ProSafe 24-Port Gigabit Smart Switch GS724T-300

• Network Protocol and Standards Compatibility
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x full-duplex flow control
• Interfaces
• GS724T-300: 24 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports)
• GS716T-200: 16 RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports)
• 2 Dual Personality SFP slots for fiber Gigabit Ethernet modules
• Administrative Switch Management
• RFC 1213 MIB II
• RFC 1643 Ethernet Interface MIB
• RFC1493 Bridge MIB
• Jumbo Frame Support (up to 9 KB)
• IEEE 802.1Q Tag VLAN
• GS716T-200: 128 Static VLANs
• GS724T-300: 128 Static VLANs
• IEEE 802.1p (Class of Service)
• DSCP - L3 QoS
• Port -based ingress/egress rate limiting
• IEEE 802.3ad static or dynamic link aggregation (LACP)
• DHCP client function
• Broadcast storm control
• Port mirroring (many-to-one)
• Port setting
• Green features: Power saving by cable length ( <10m). Power saving by auto power when link down
• IGMP snooping v1/v2
• IEEE 802.1x (RAIDUS)
• Access control list (ACL) - MAC, IP
• SNTP
• IEEE 802.1ab LLDP
• Protected ports**
• HTTP and HTTPS
• Auto denial-of-service (DoS) prevention
• Syslog
• Ping & traceroute
• Web-based configuration, anywhere on the network
• Smartwizard Discovery Utility program auto discovers devices (up to 254 agents/switches); set system configuration to each agent
• Configuration backup/restore (easy to configure more than one switch)
• Password access control
• Firmware upgradeable
• Support of Ethernet audio/video (EAV)*
• Active Flow Control
• Full-duplex IEEE 802.3x pause frame flow control
• Half-duplex back-pressure control
• Performance Specifications
• Forwarding modes: Store-and-forward
• Bandwidth: GS724T-300 = 48 Gbps, GS716T-200 = 32 Gbps
• Network latency:
• GS716T-200 average latency 4.5 us for 1000 Mbps with 64 bytes
• GS724T-300 average latency 4.5 us for 1000 Mbps with 64 bytes
• Buffer memory: 512 KB embedded memory per unit
• Priority queues: 4
• Priority queuing: Weighted Round Robin (WRR)
• Address database size: 8,000 media access control (MAC) addresses per system
• Addressing: 48-bit MAC address
• Mean time between failures (MTBF): Waiting for ODM to complete the MTBF reports.
• Acoustic Noise:
• GS716T-200: 33 dBA
• GS724T-300: 34.4 dBA
• LEDs
• Unit: Power
• Per port: Link, activity, speed, duplex
• Power Supply
• Maximum Power Consumption:
• GS716T - 16.5W
• GS724T - 21.5W
• 100-240V AC/50-60 Hz universal input
• Physical Specifications
• Dimensions (h x w x d):
• GS716T-200: 43 x 440 x 260 mm (1.7 x 17.3 x 10.2 in)
• GS724T-300: 43 x 440 x 260 mm (1.7 x 17.3 x 10.2 in)
• Weight:
• GS716T-200: 2.56 kg (5.64 lb)
• GS724T-300: 2.66 kg (5.86 lb)
• Environmental Specifications
• Operating temperature: 32° to 131°F (0° to 55° C)
• Storage temperature: -4° to 158°F (-20° to 70° C)
• Operating humidity: 90% maximum relative humidity, non-condensing
• Storage humidity: 95% maximum relative humidity, non-condensing
• Operating altitude: 10,000 ft (3,000 m) maximum
• Storage altitude: 10,000 ft (3,000 m) maximum
• Electromagnetic Compliance
• CE mark, commercial
• FCC Part 15 Class A
• VCCI Class A
• EN 55022 (CISPR 22)
• EN 55024 (CISPR 24)
• C-Tick
• Safety Agency Approvals
• UL listed (UL 1950)/cUL
• IEC 950/EN 60950
• CE mark, commercial
• CUL 60950 (Listed)/EN 60950 (Low Voltage Directive)
• CB
• CCC
• Modules
• NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC Module with LC connectors for 50um or 62.5um multi-mode fiber cable
• NETGEAR ProSafe AGM732F Fiber 1000BASE-LX SFP GBIC Module with LC connectors for 9um single-mode fiber cable
• NETGEAR ProSafe AGM733 Fiber 1000BASE-ZX SFP GBIC Module with LC connectors for 9um single-mode fiber cable
• Warranty
• NETGEAR Lifetime Warranty
• PRR0331
• Package Contents
• 16- or 24-port Gigabit Smart Switch (GS716T-200 or GS724T-300)
• Rubber footpads
• Power cord
• Rack-mount kit
• Smart Switch resource CD
• Smart Switch installation guide
